Security Gateway

For IT Environment

A complete range of specifically designed appliances integrating our UTM software for the security needs of everyone, from branch offices to medium and large networks.

The Easy Way to secure your Small Networks

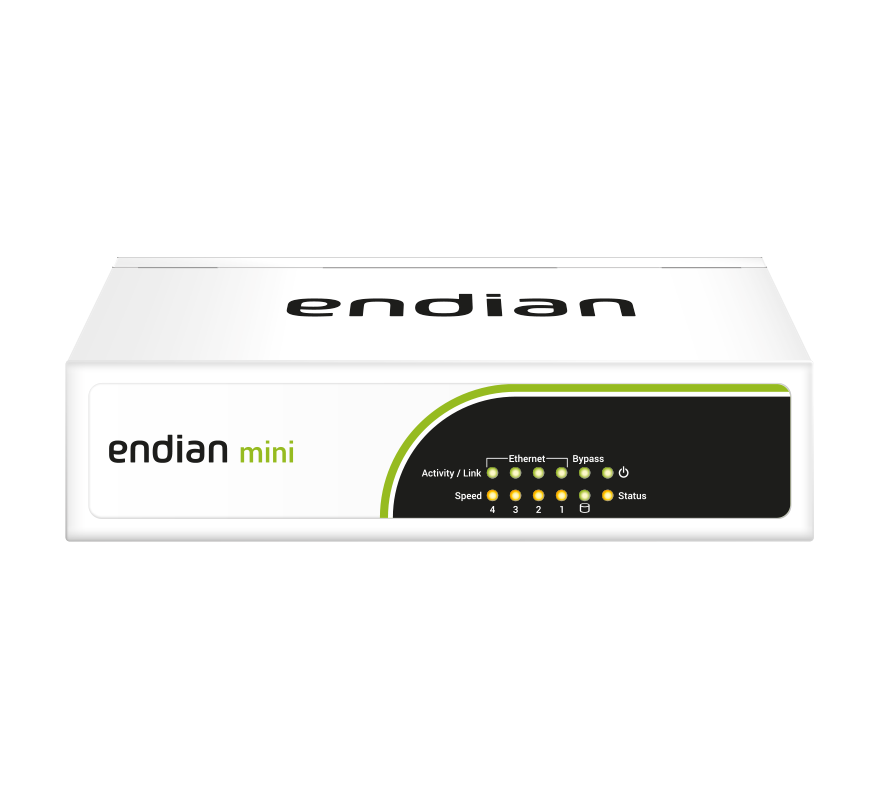

Endian Mini

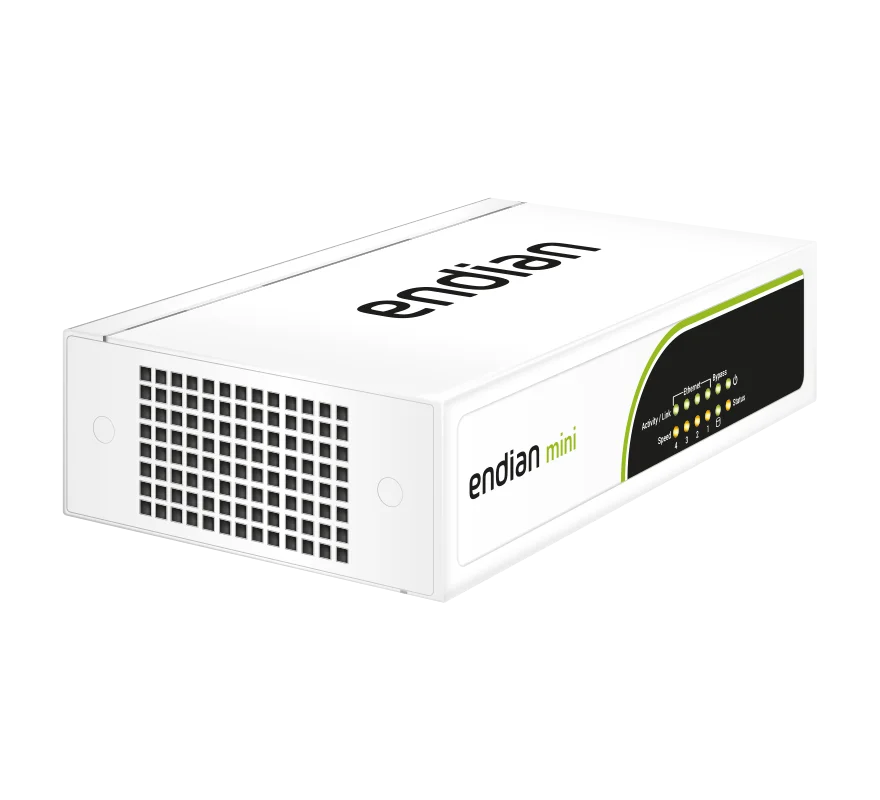

  • 01_endian_mini.png

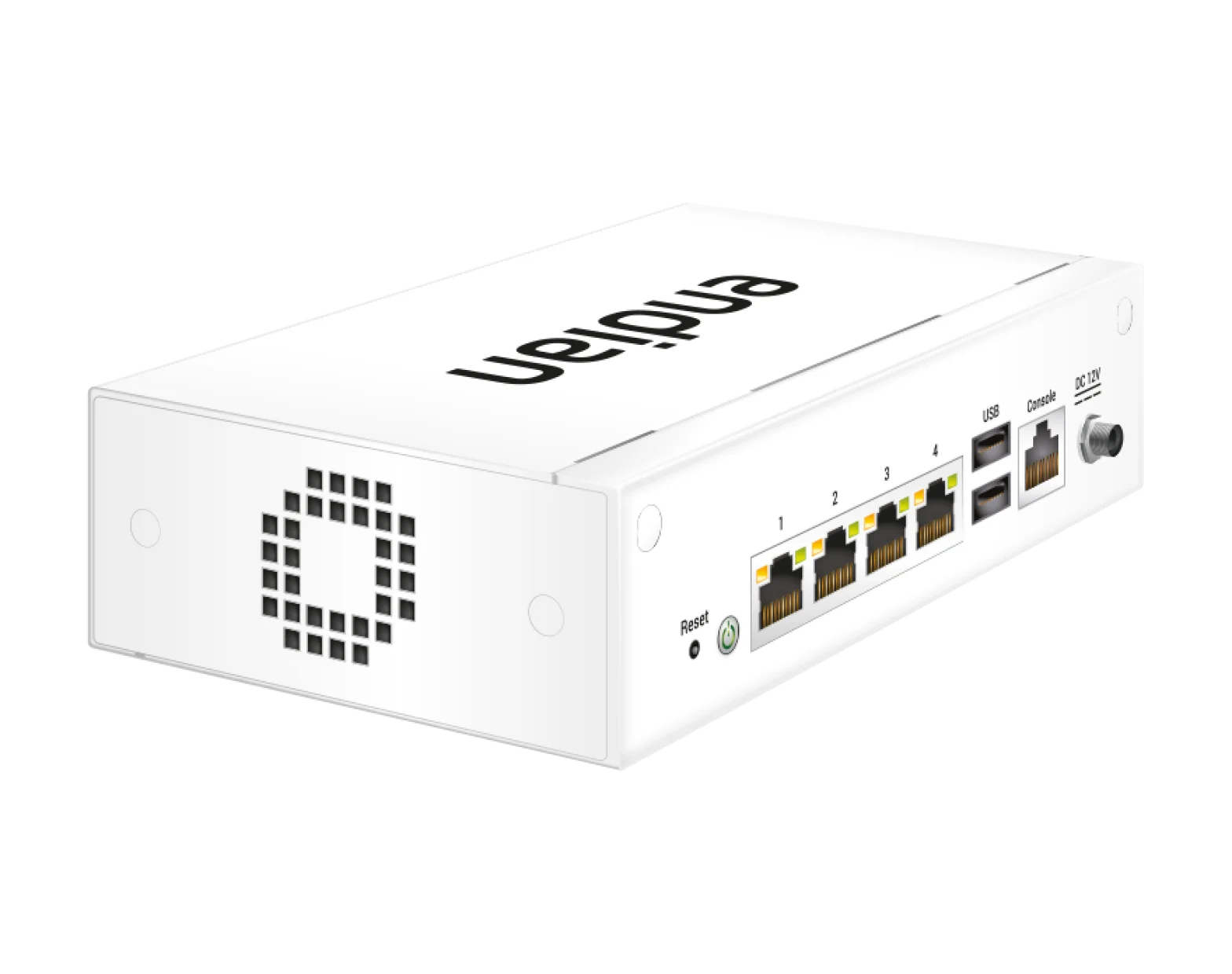

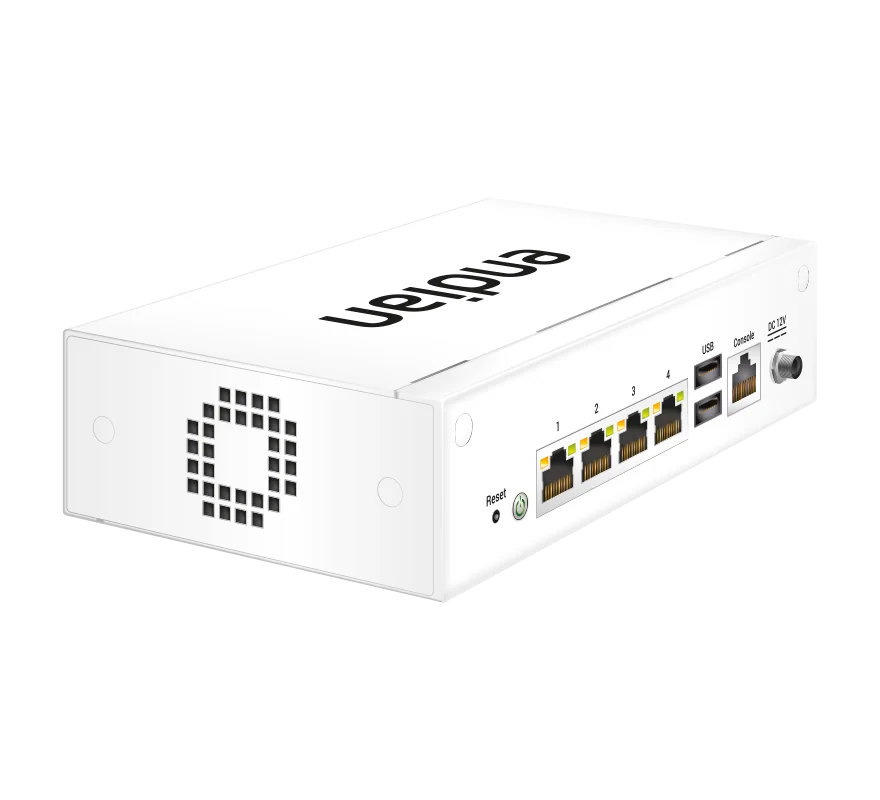

  • 02_endian_mini.png

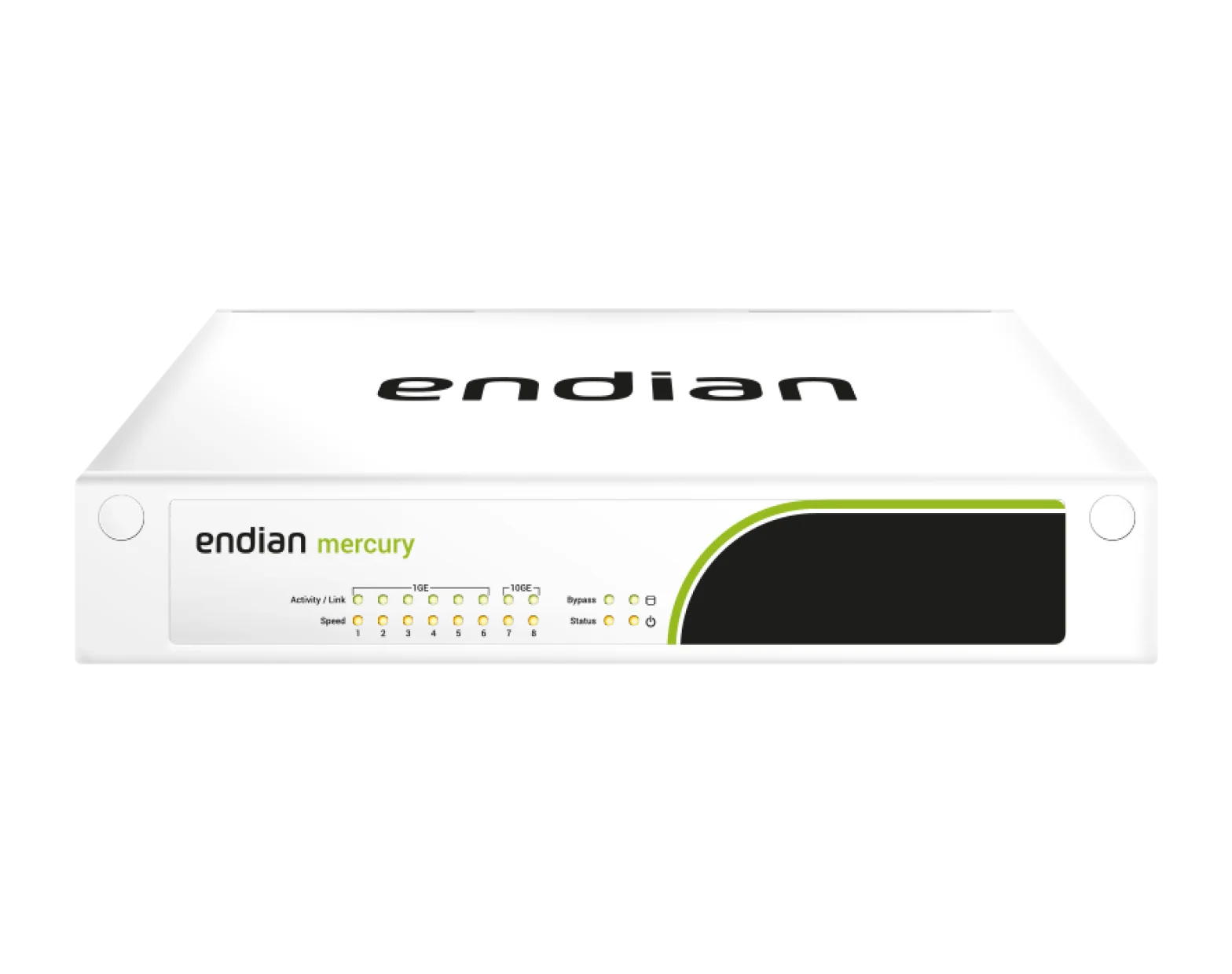

  • 03_endian_mercury.png

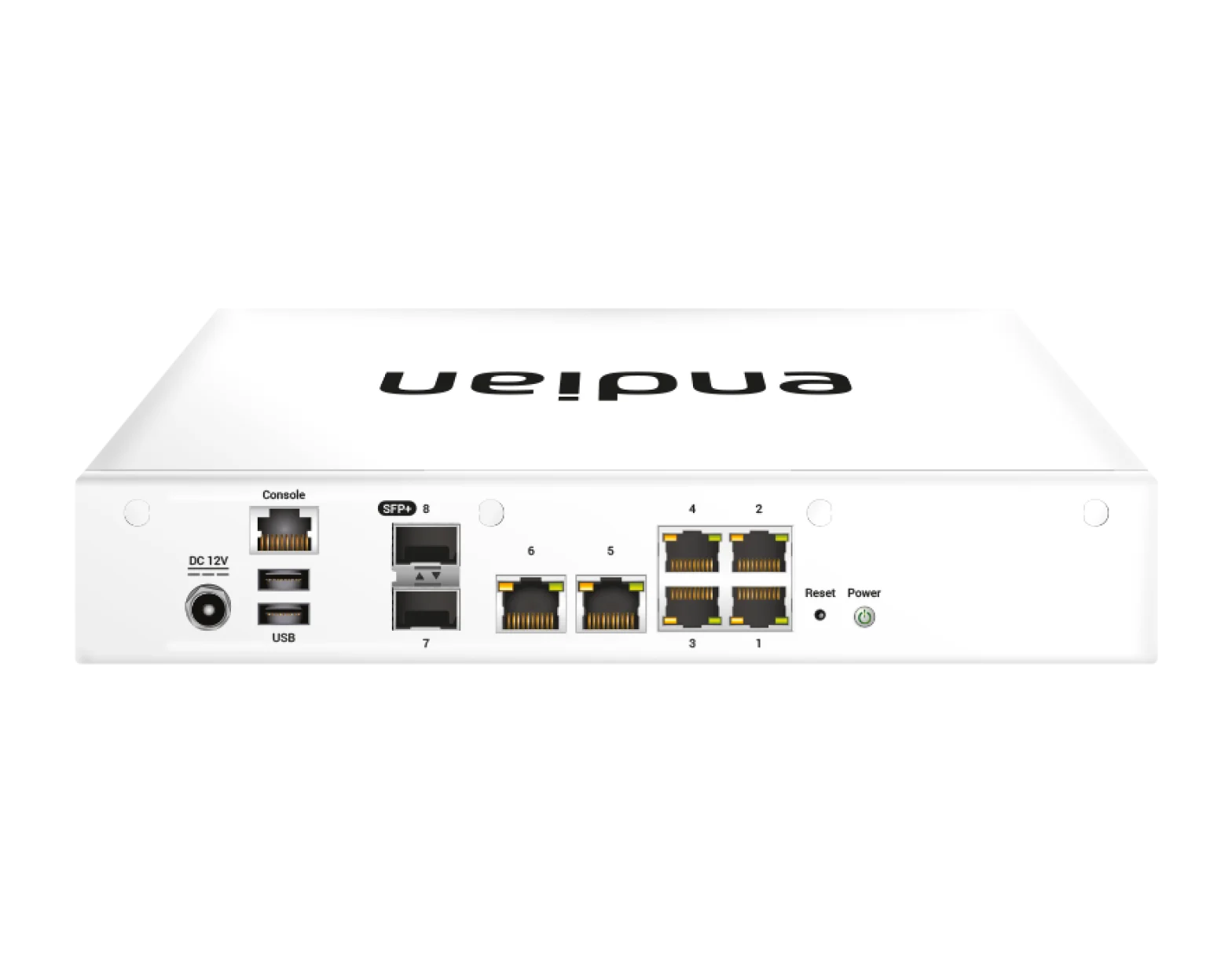

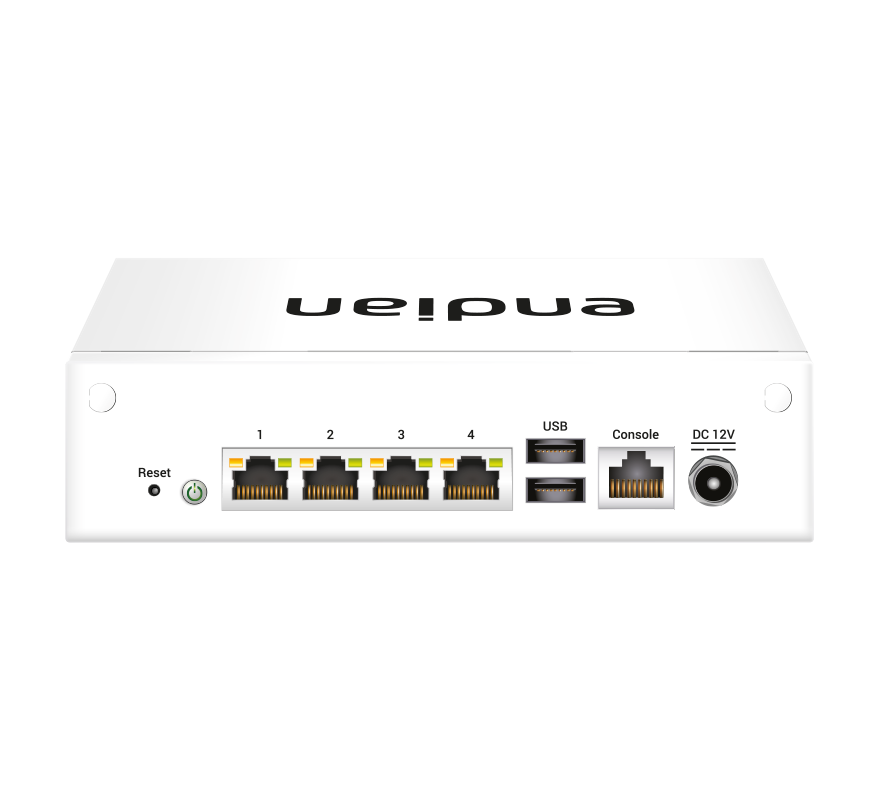

  • 04_endian_mercury.png
  • 05_endian_mini.png
  • 06_endian_mini.png
  • 07_endian_mini.png

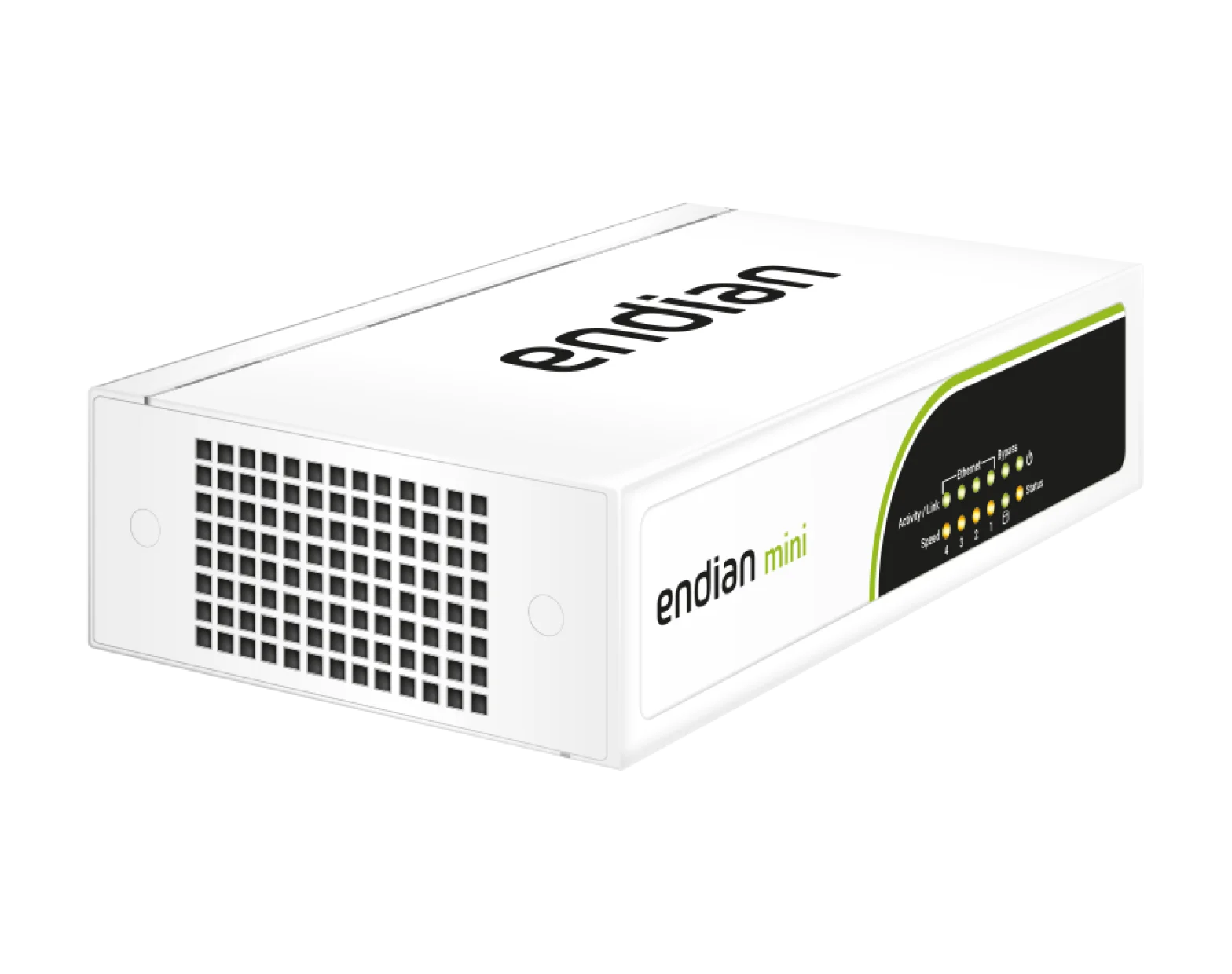

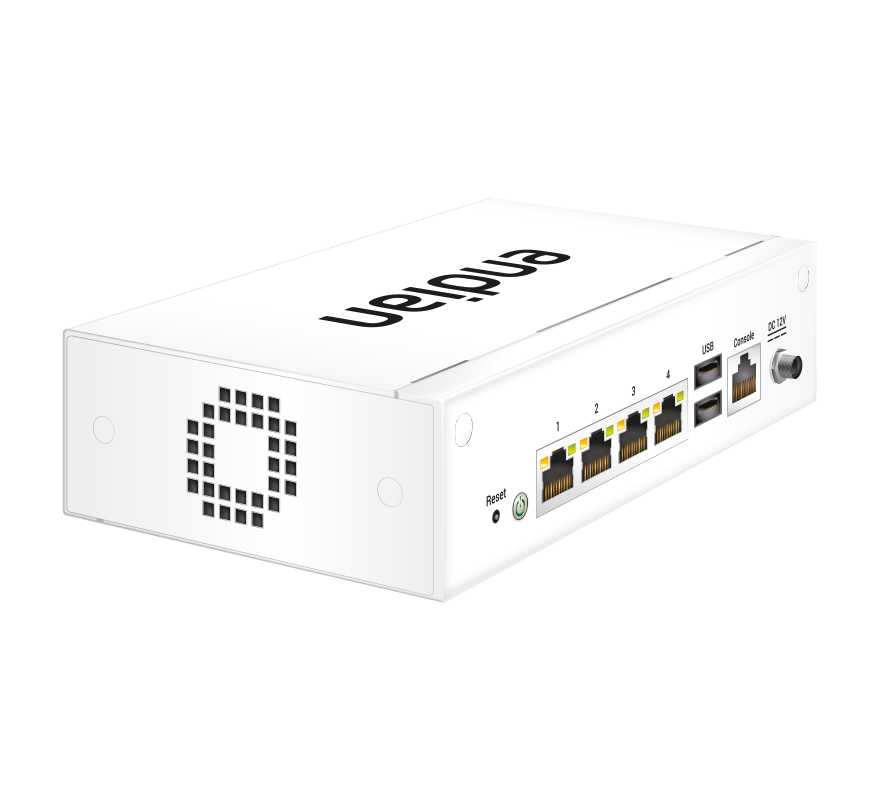

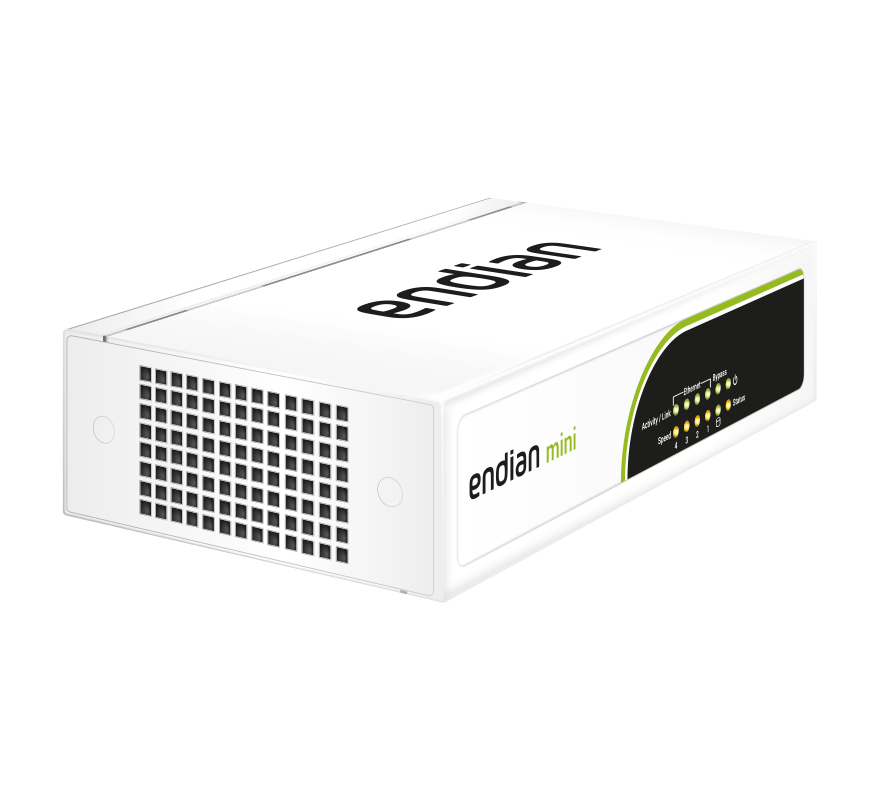

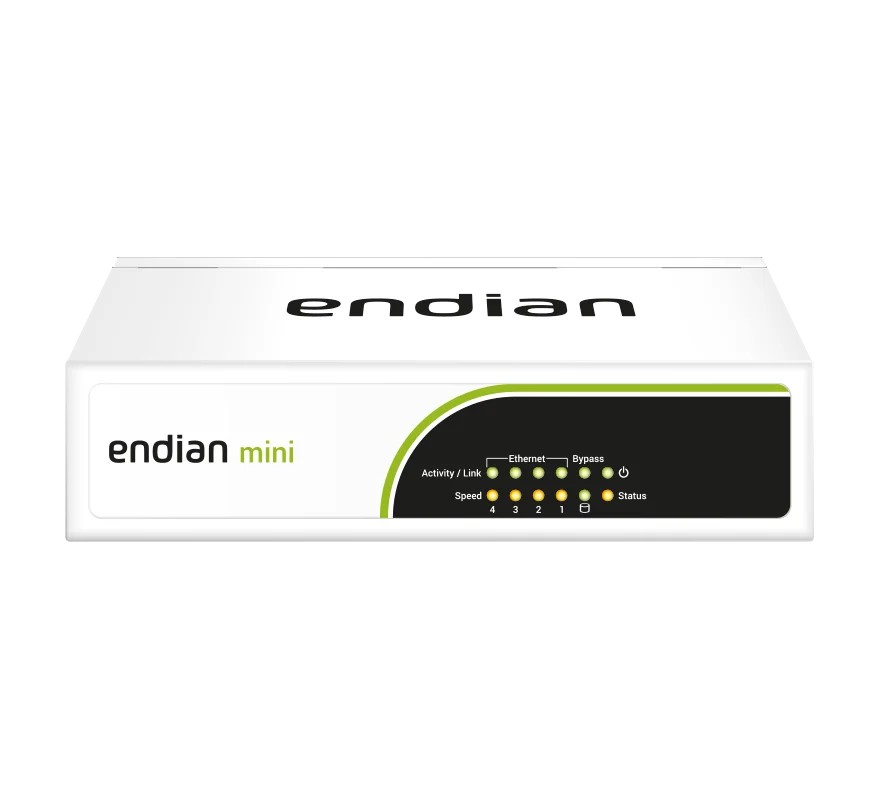

The Endian Mini delivers powerful performance in a space saving compact appliance. It can easily connect and secure any home or small office network with support for up to 50 devices.

The Endian UTM family is built for business with a comprehensive feature set that provides a suite of advanced network security. Protect your network and users from advanced threats (malware, ransomware, phishing, etc). Allow users to work from anywhere securely with remote user access. Visualize and monitor everything like never before.

Highlights

  • Recommended for 10 to 50 devices
  • Compact design
  • Desktop and Rack 1U Kit (optional)
  • 4 GB RAM
  • 32 GB eMMC
  • 4x GbE ports
  • Fanless
  • High availability (supported)

Performance*

Firewall Throughput

3 Gbit/s

VPN Throuput (IPsec & SSL)

240 Mbit/s

IPS Throughput

300 Mbit/s

Antivirus Throughput (Proxy)

400 Mbit/s

Web Security Throughput

900 Mbit/s

Concurrent Sessions

450,000

* Maximum throughput measured under ideal test conditions and using multiple flows through multiple ports. Actual performance may vary depending on network conditions and activated services.

Dimensions and environmental specifications

Form factor

Desktop Network Appliance

Dimension appliance WxDxH

165mm x 92mm x 40mm

Dimensions box WxDxH

280mm x 240mm x 150mm

Weight (unpacked/ packed)

750g / 1,570g

Power supply

12V DC Power

Operating temperature

32°F ~ 104°F (0°C ~ 40°C)

Storage temperature

-4°F ~ 140°F (-20°C ~ 60°C)

Humidity

10% ~ 80%, non-condensing

Hardware specifications

CPU

X86 Dual Core 2,4GHz

Memory

4 GB

Storage

32GB eMMC

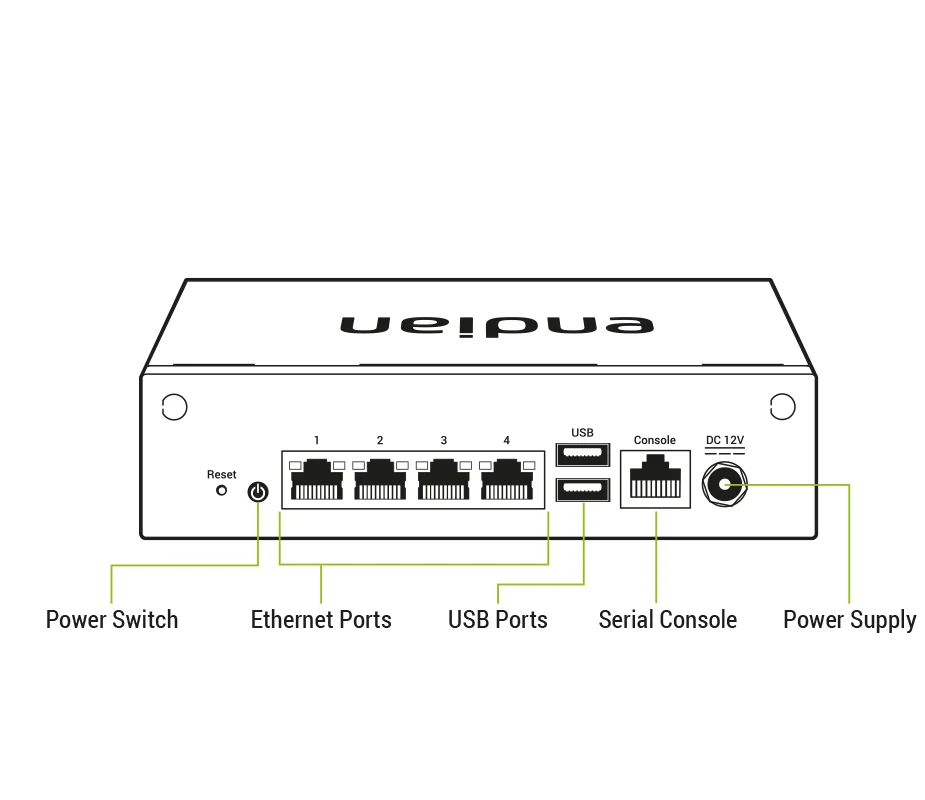

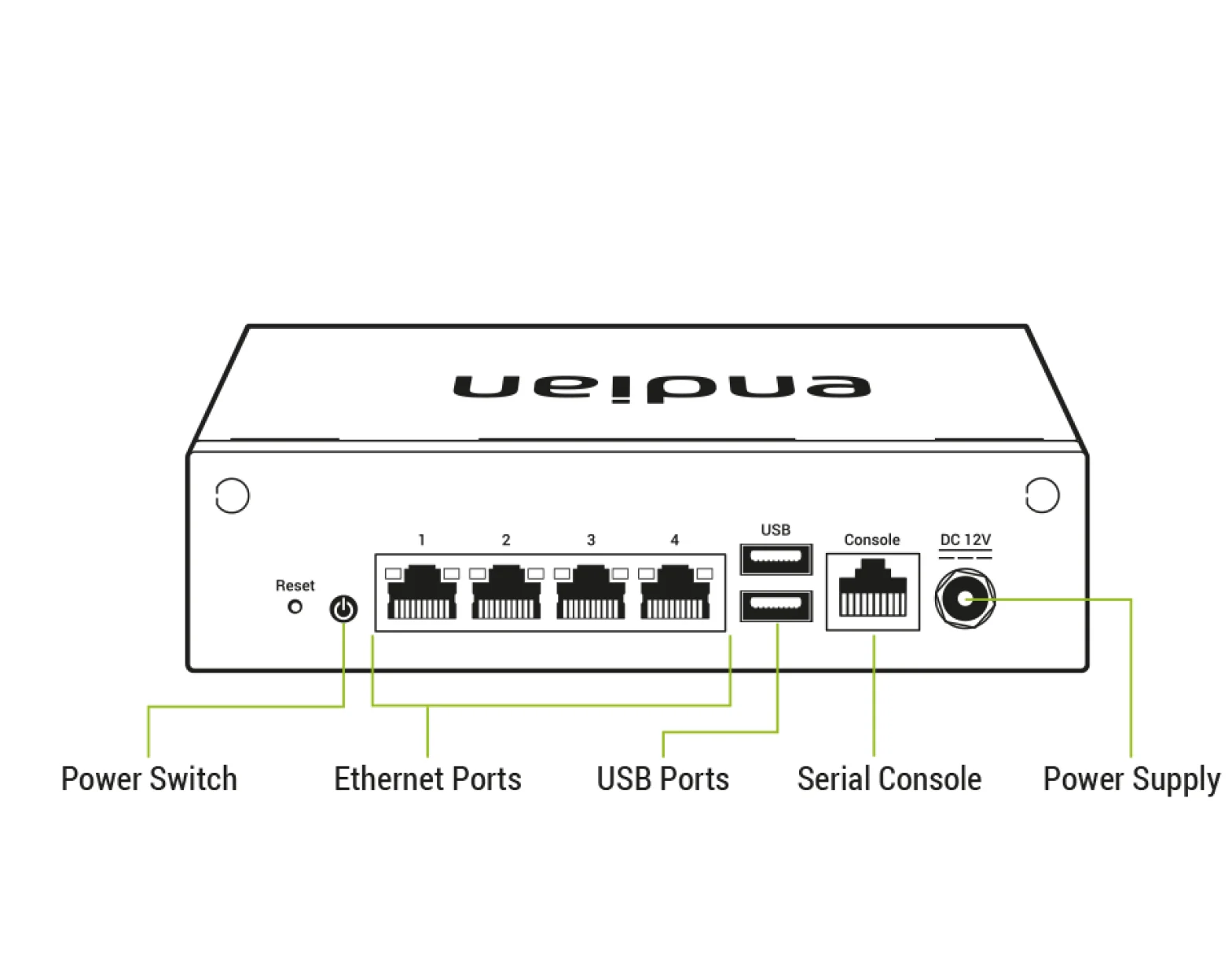

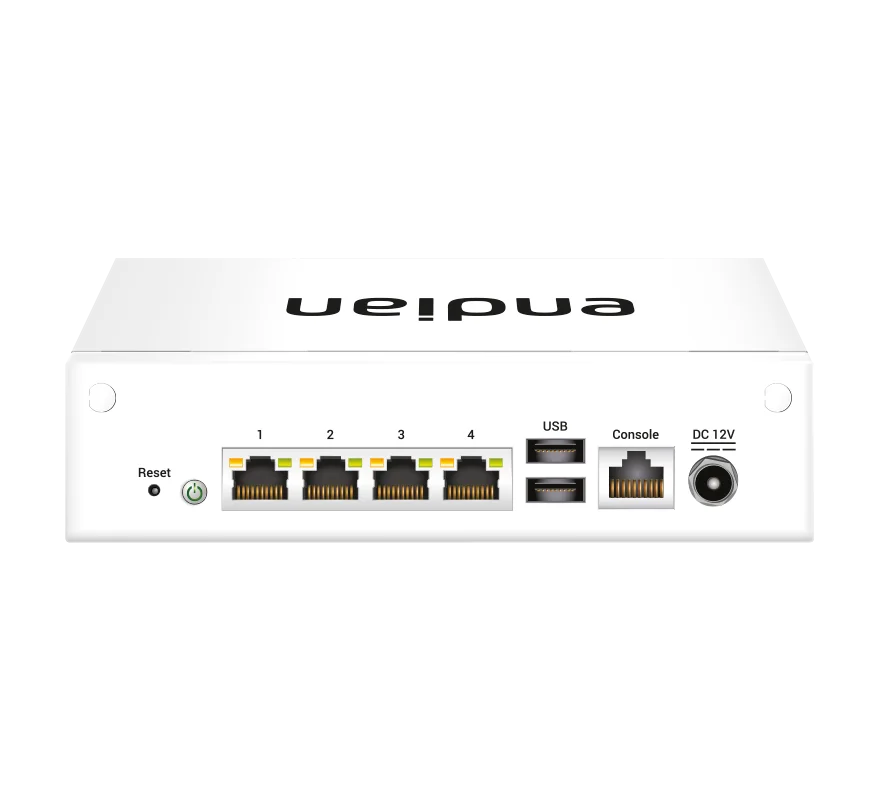

Networking & Interfaces

4x GbE ports

1x Console (RJ-45)

2x USB 3.0

Cooling

Fanless

Certifications

CE, UKCA, FCC, RoHS

Optionals & Accessory

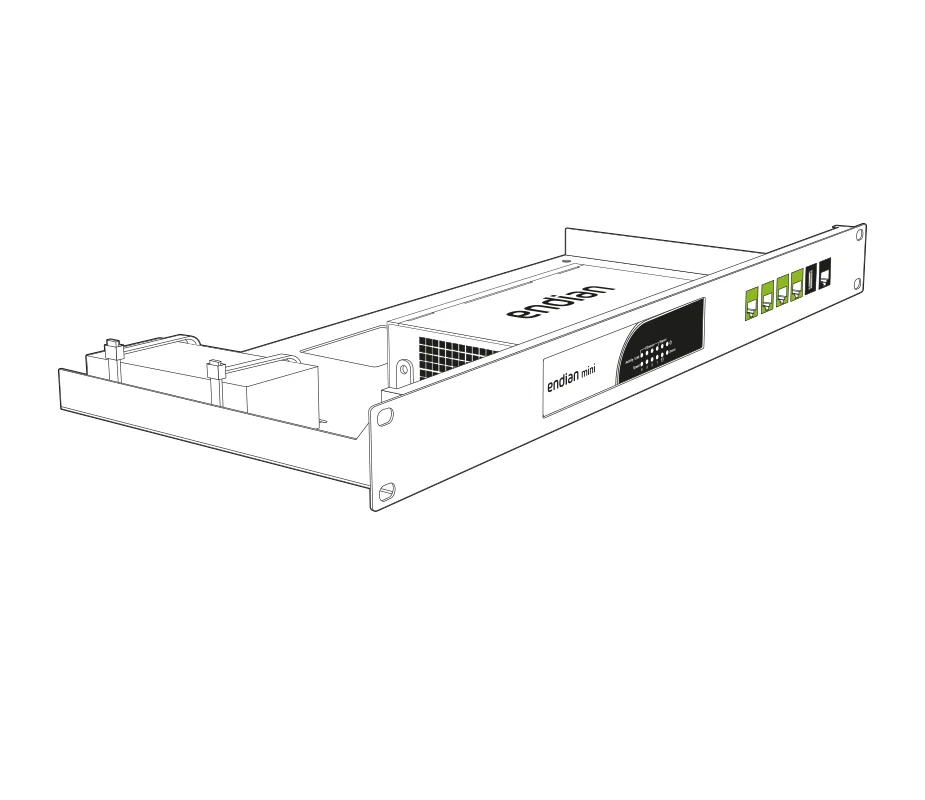

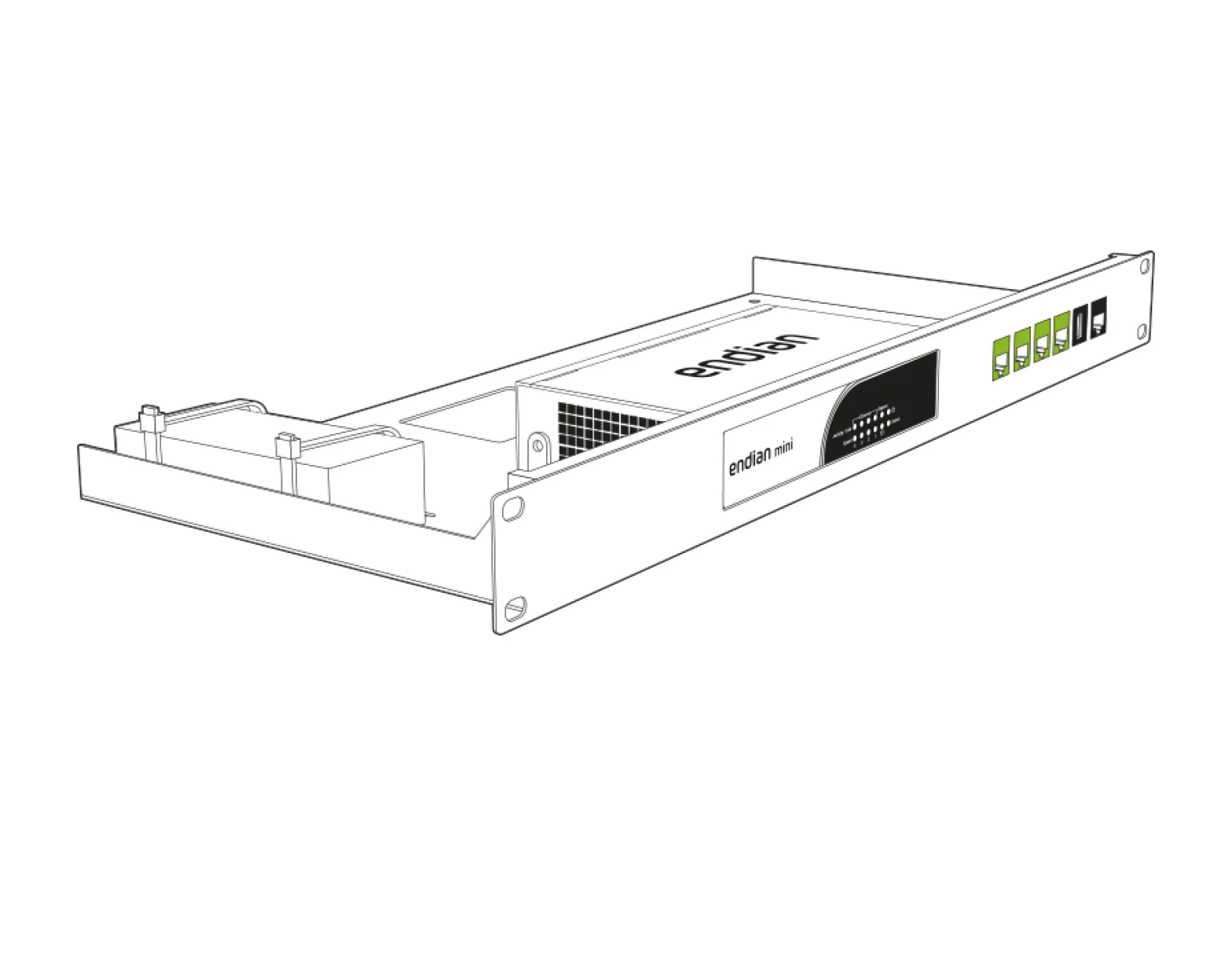

Rack Mount Kit

Easy 5-minute assembly in a 19 inch rack.

Front facing network connections.

Fixed appliance and power supply.
