Security Gateway
For IT Environment
A complete range of specifically designed appliances integrating our UTM software for the security needs of everyone, from branch offices to medium and large networks.
Unrivaled Power and Security for Large Networks

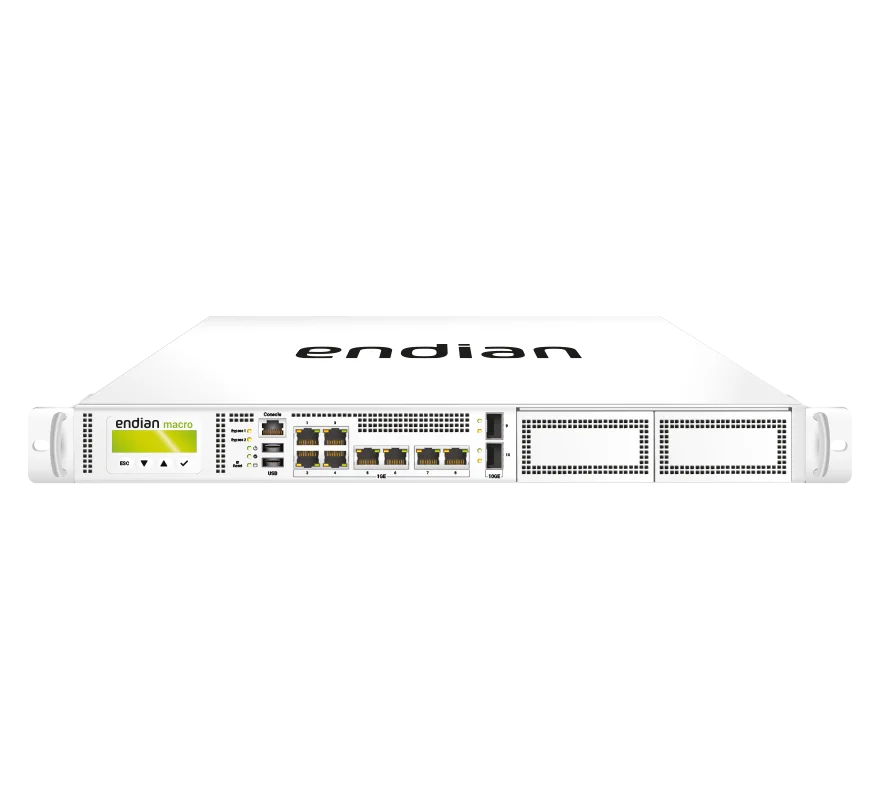

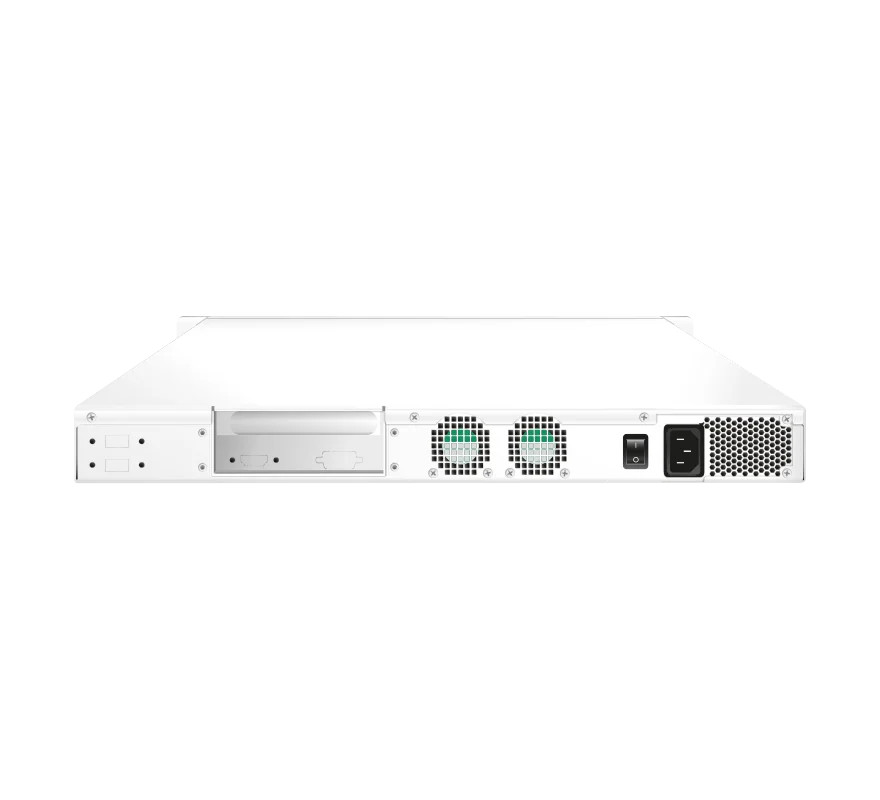

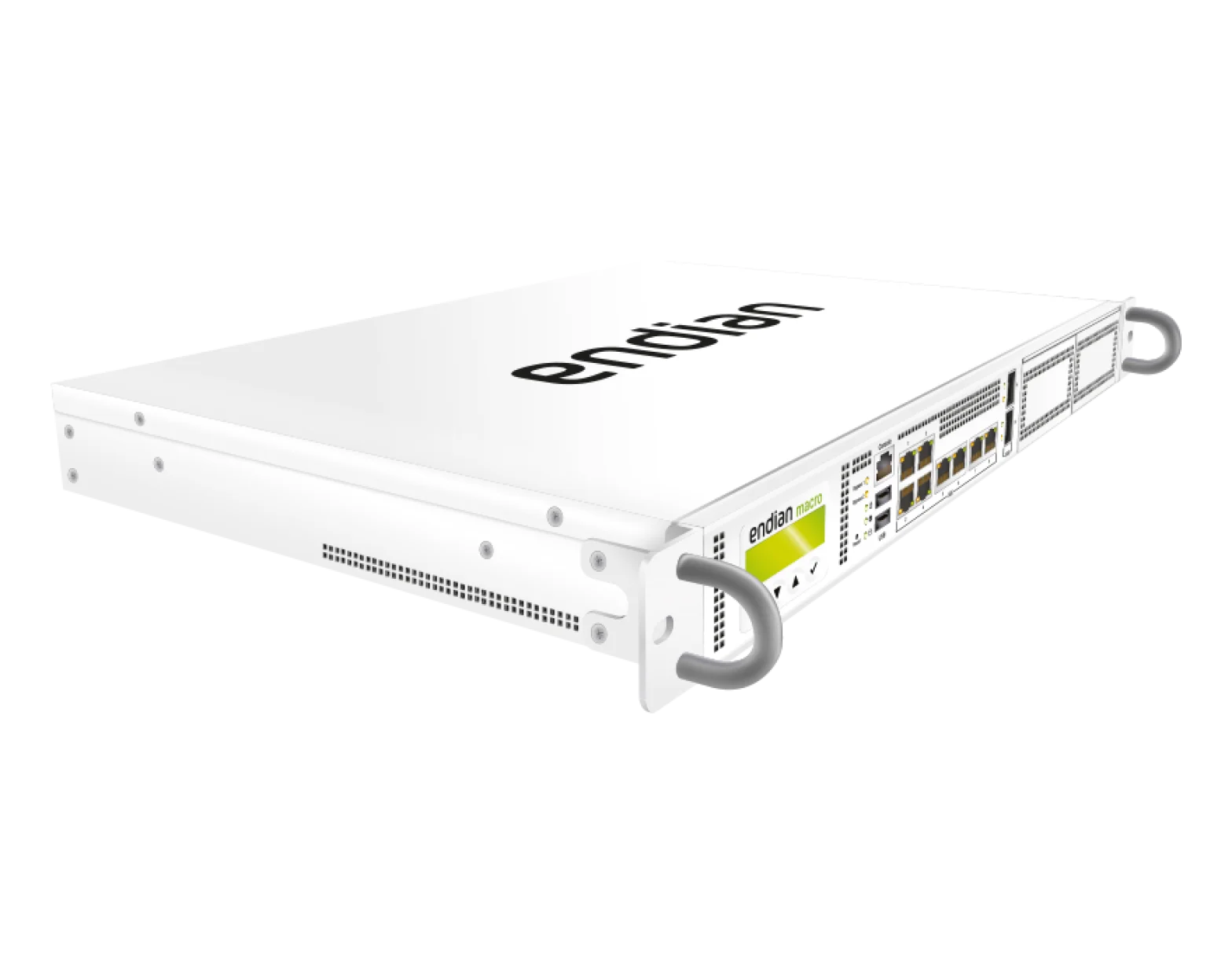

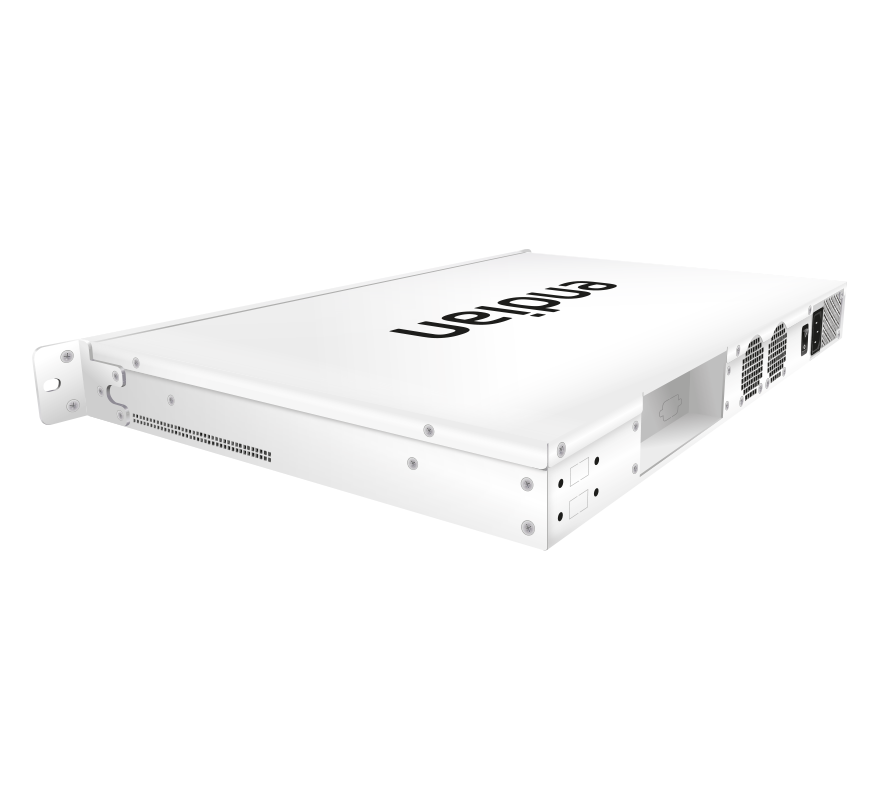

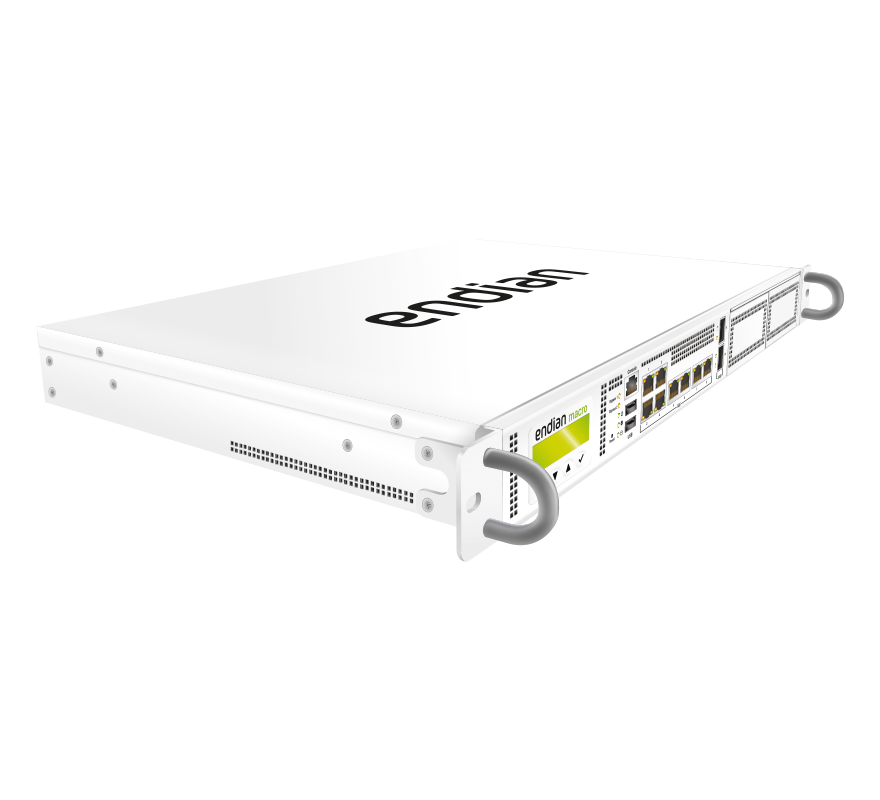

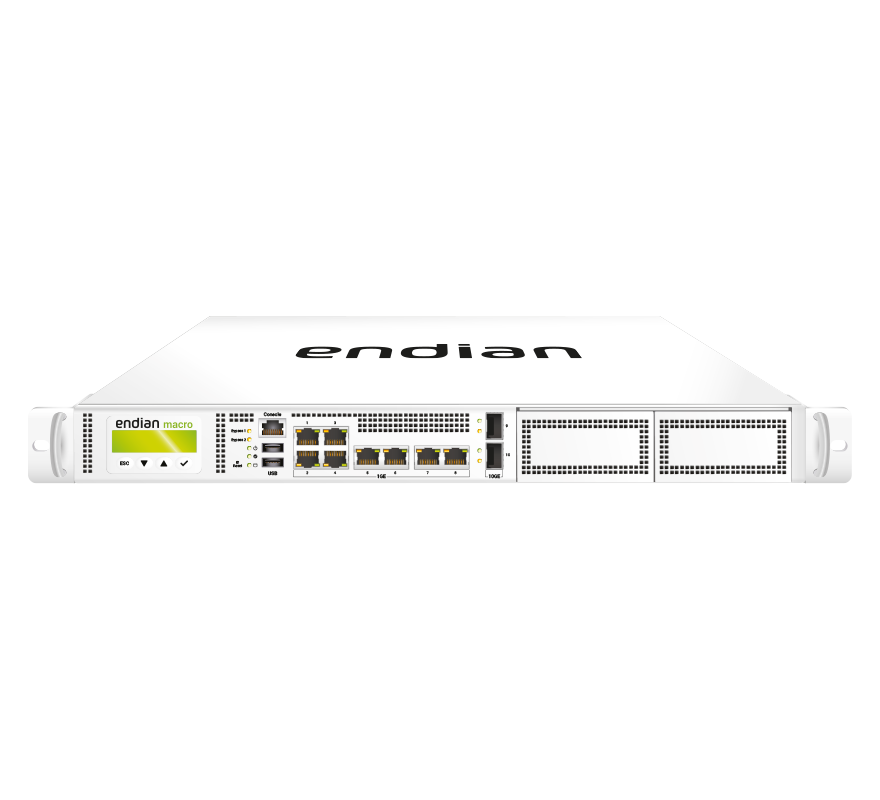

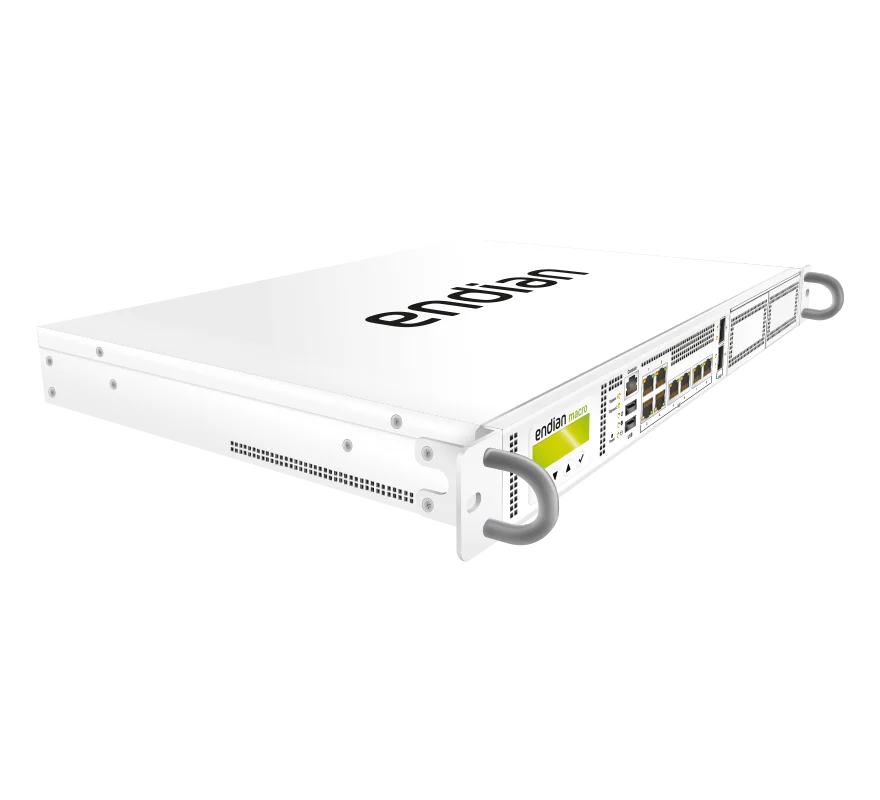

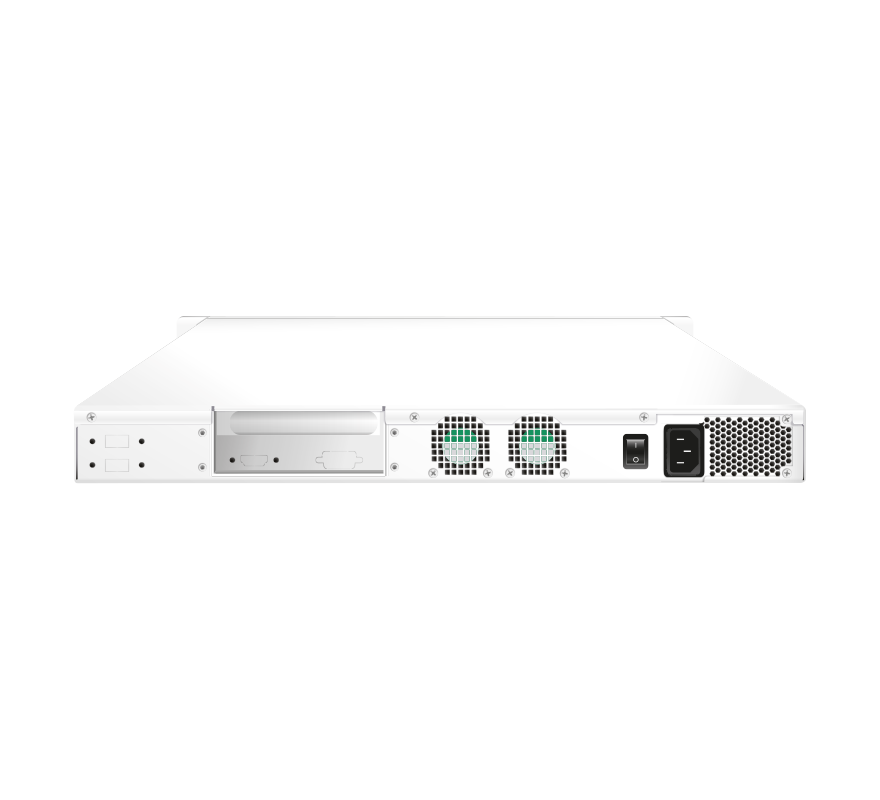

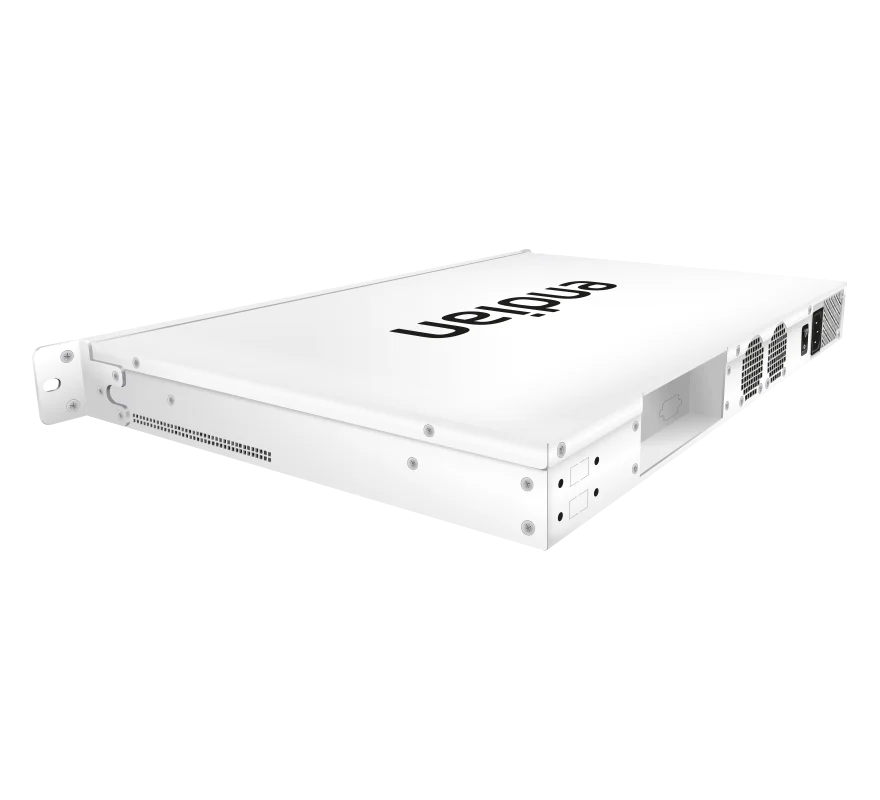

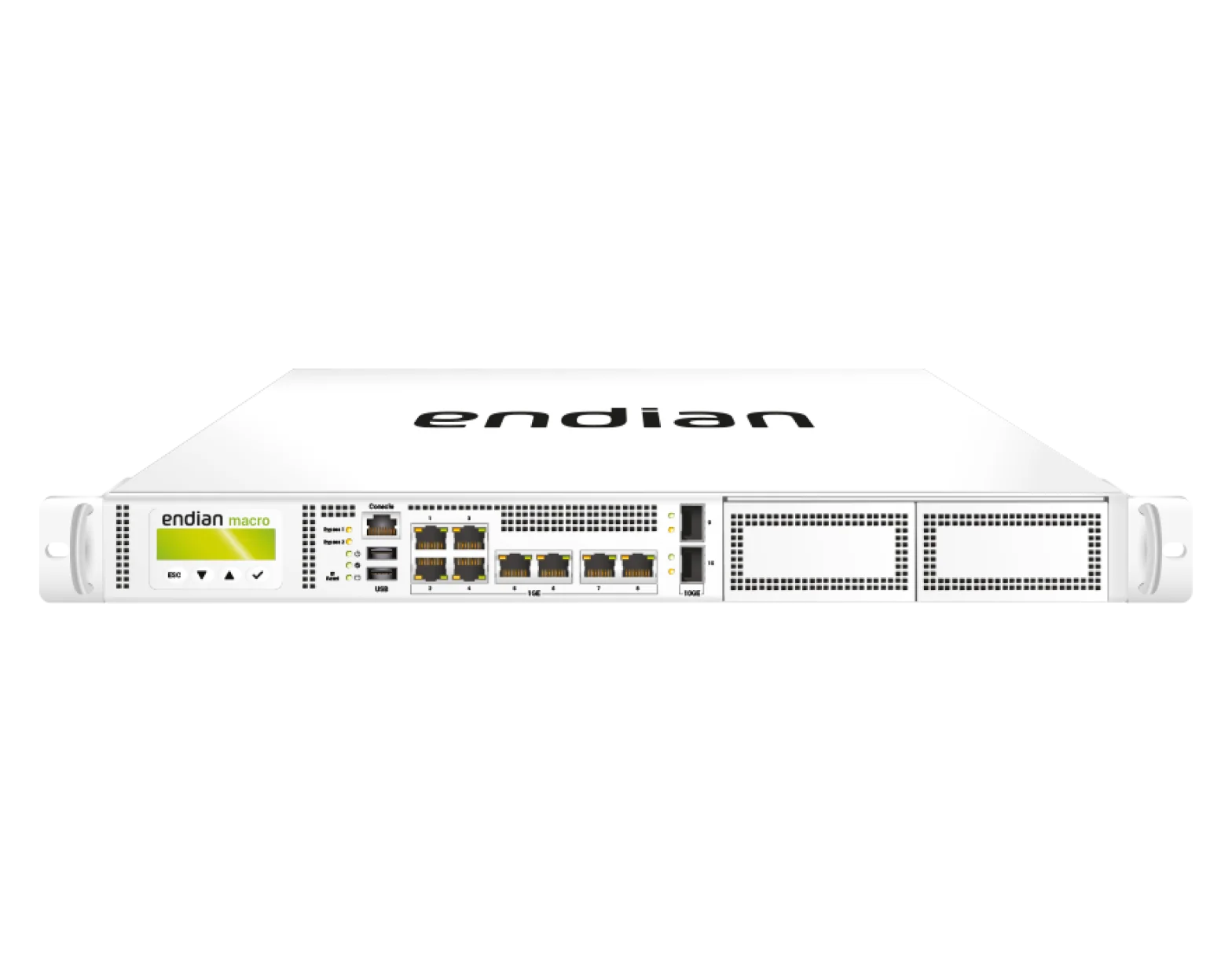

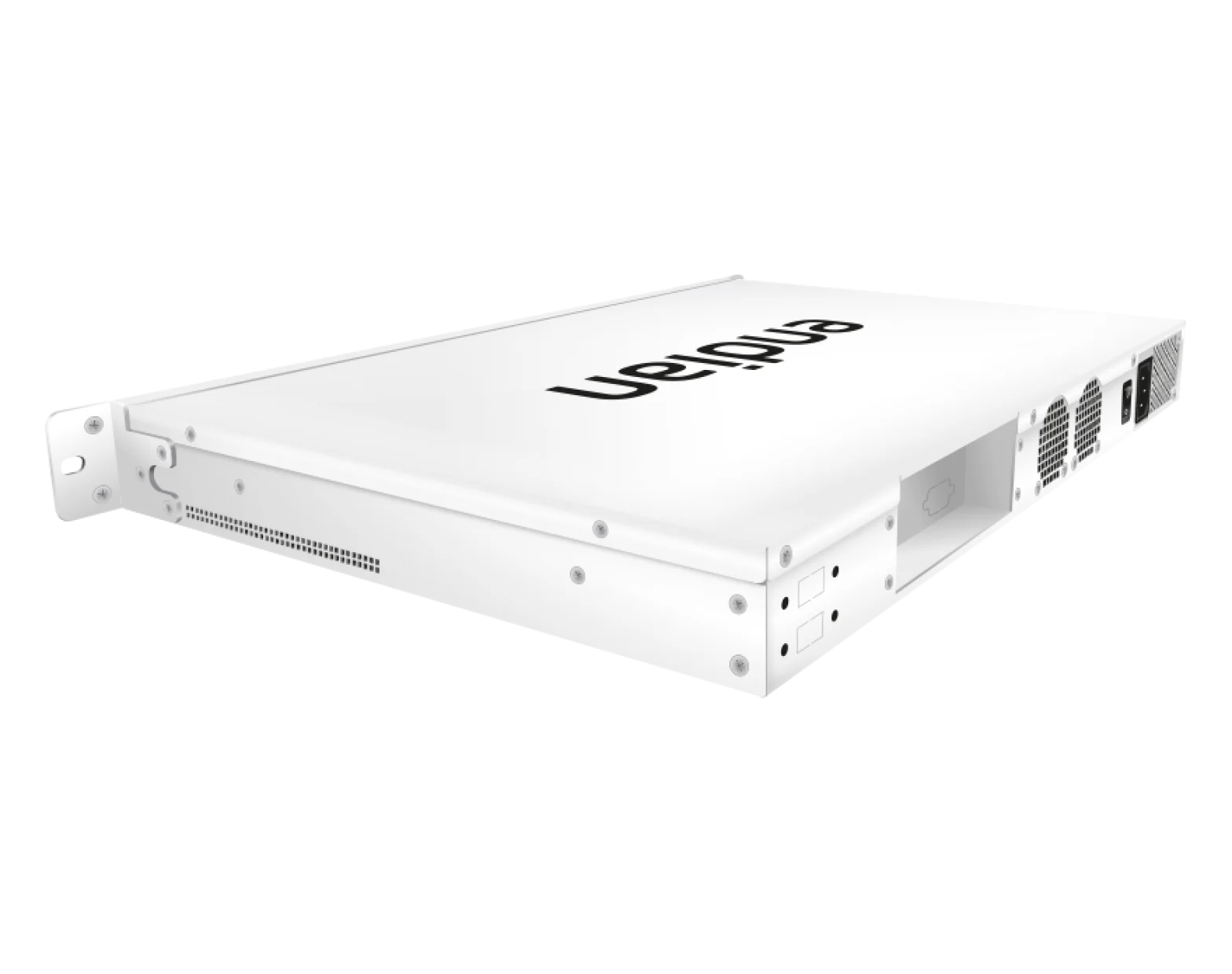

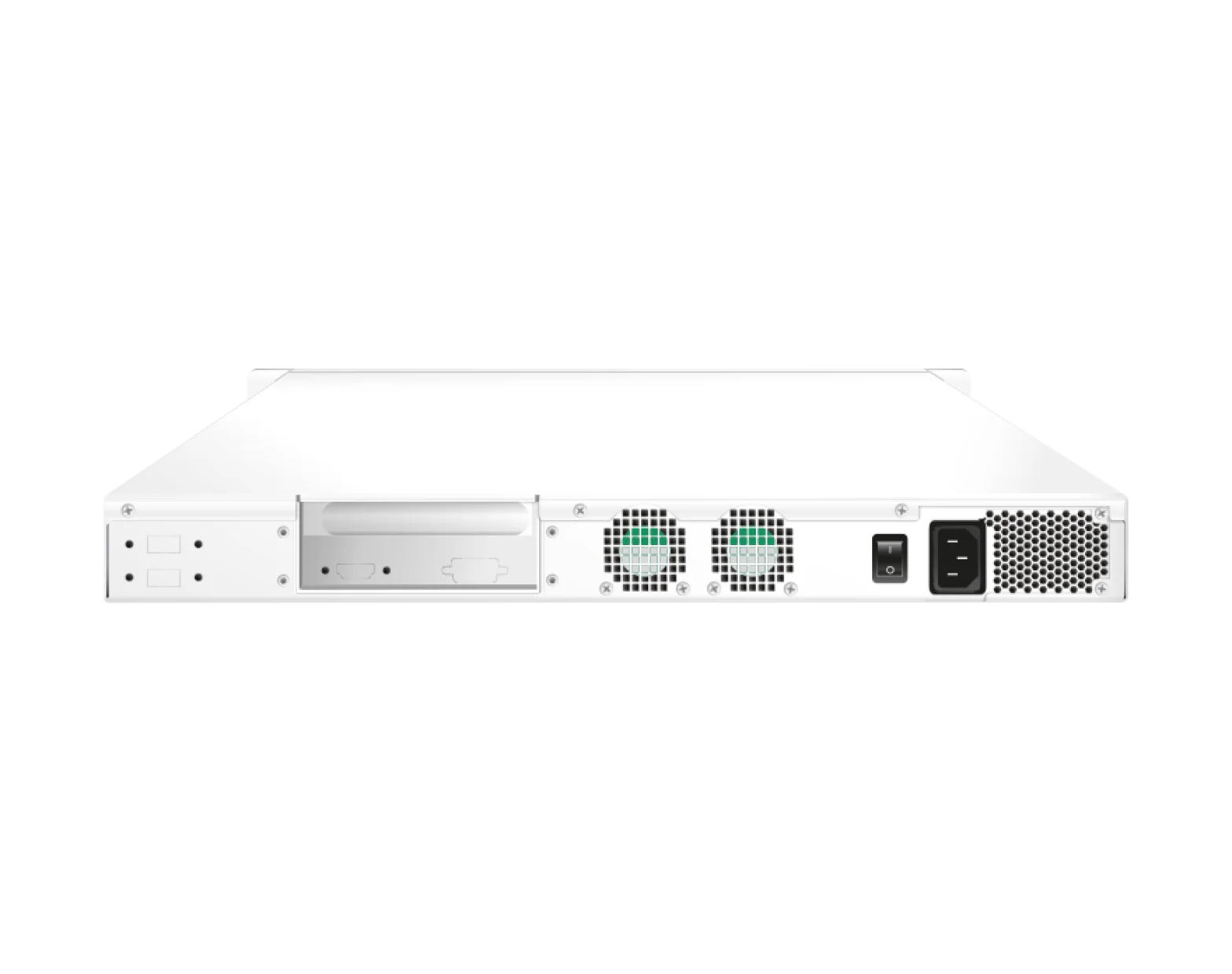

Endian Macro
The Endian Macro provides class-leading power and security for large networks up to 1,000 devices. Equipped with redundant SSD storage and expansive connectivity options including 10GbE ports in an enterprise rack-mount appliance.
The Endian UTM family is built for business with a comprehensive feature set that provides a suite of advanced network security. Protect your network and users from advanced threats (malware, ransomware, phishing, etc). Allow users to work from anywhere securely with remote user access. Visualize and monitor everything like never before.
Highlights
- Recommended for 250 to 1,000 devices
- 1U Rackmount
- 32 GB RAM
- 2x 512GB SSD
- 8x GbE ports
- 2x 10GbE SFP+ ports
- 2x Fans
- High availability (supported)
Performance*
Firewall Throughput
30 Gbit/s
VPN Throuput (IPsec & SSL)
2.8 Gbit/s
IPS Throughput
3.8 Gbit/s
Antivirus Throughput (Proxy)
5.0 Gbit/s
Web Security Throughput
10 Gbit/s
Concurrent Sessions
5,000,000
* Maximum throughput measured under ideal test conditions and using multiple flows through multiple ports. Actual performance may vary depending on network conditions and activated services.
Dimensions and environmental specifications
Form factor
1U Rackmount
Slide rack kit (optional)
Dimension appliance WxDxH
430 mm x 305 mm x 44 mm
Dimensions box WxDxH
540 mm x 460 mm x 210 mm
Weight (unpacked/ packed)
5120g / 6620g
Power supply
220W ATX Single Power Supply
Operating temperature
32°F ~ 104°F (0°C ~ 40°C)
Storage temperature
-4°F ~ 140°F (-20°C ~ 60°C)
Humidity
10% ~ 80% non-condensing
Hardware specifications
CPU
8 Cores / 16 Threads
Memory
32 GB
Storage
2x SSD 512 GB

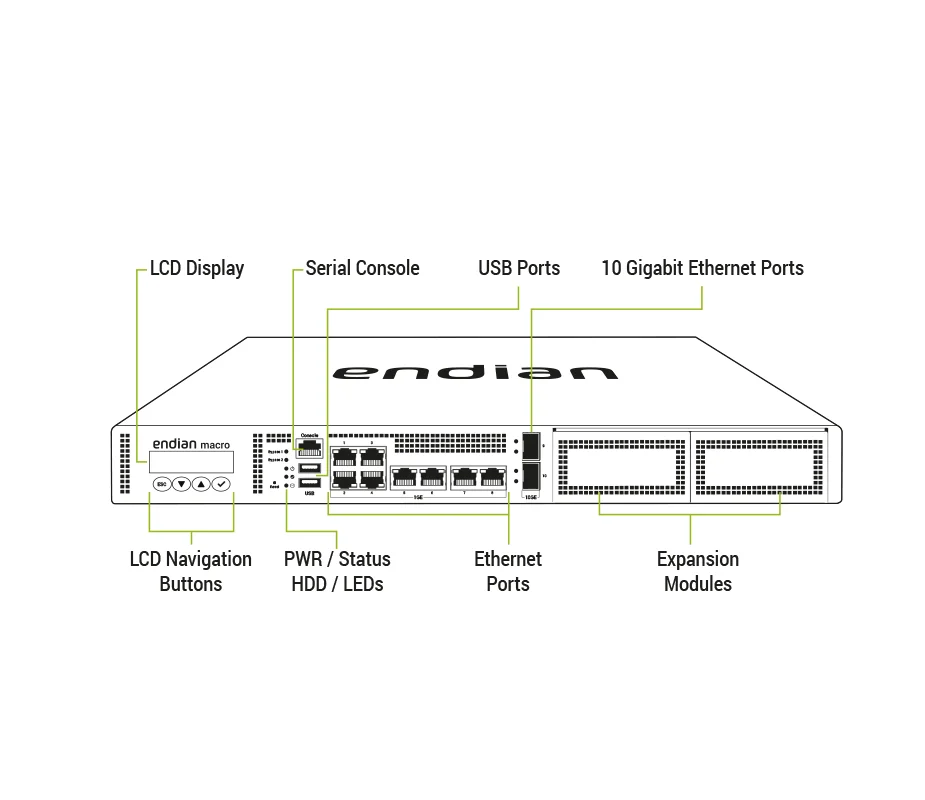

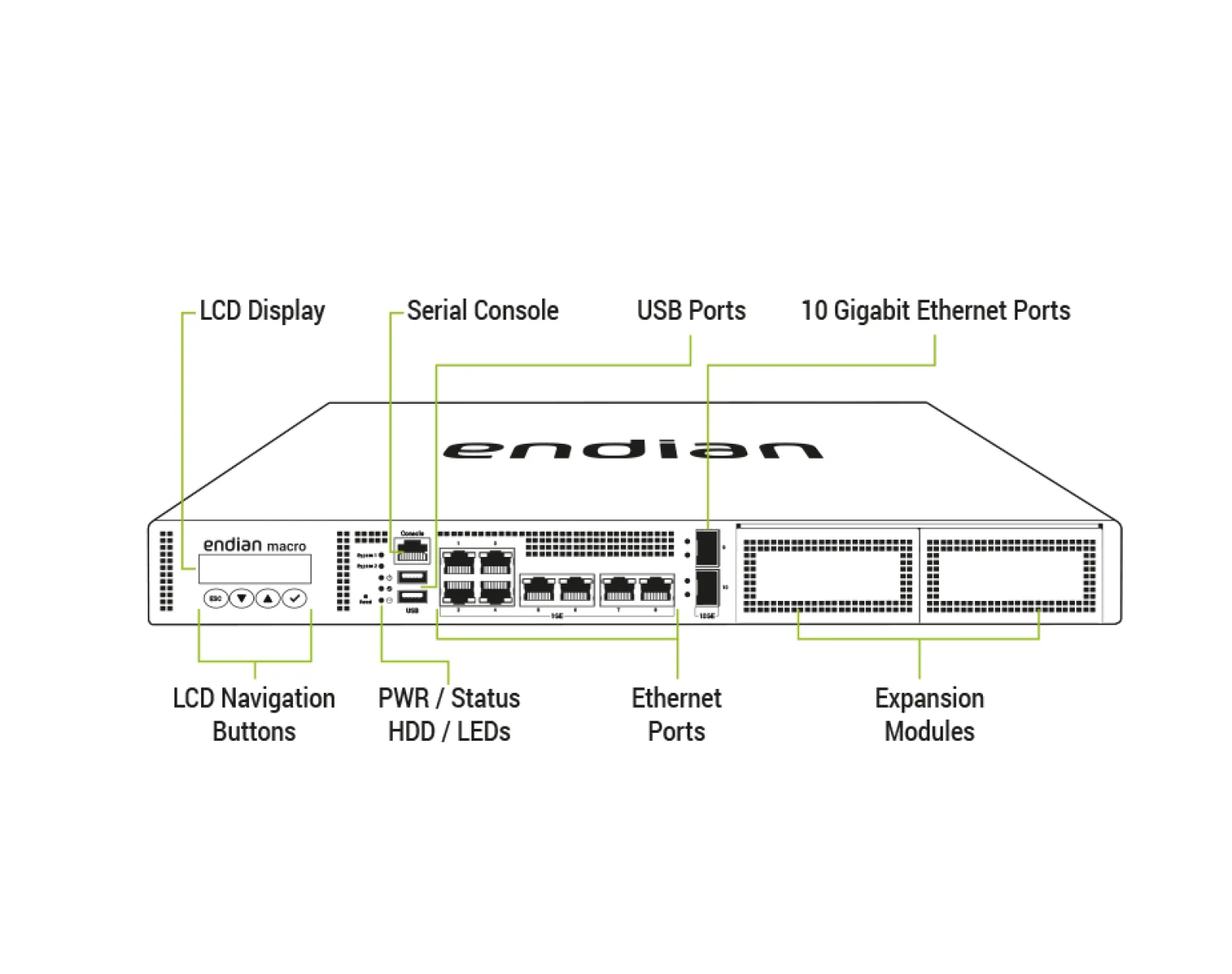

Networking & Interfaces
2x USB 3.2 Gen1
1x Console port
8x GbE ports
2x 10GbE SFP+ ports
LAN Bypass
2 pairs

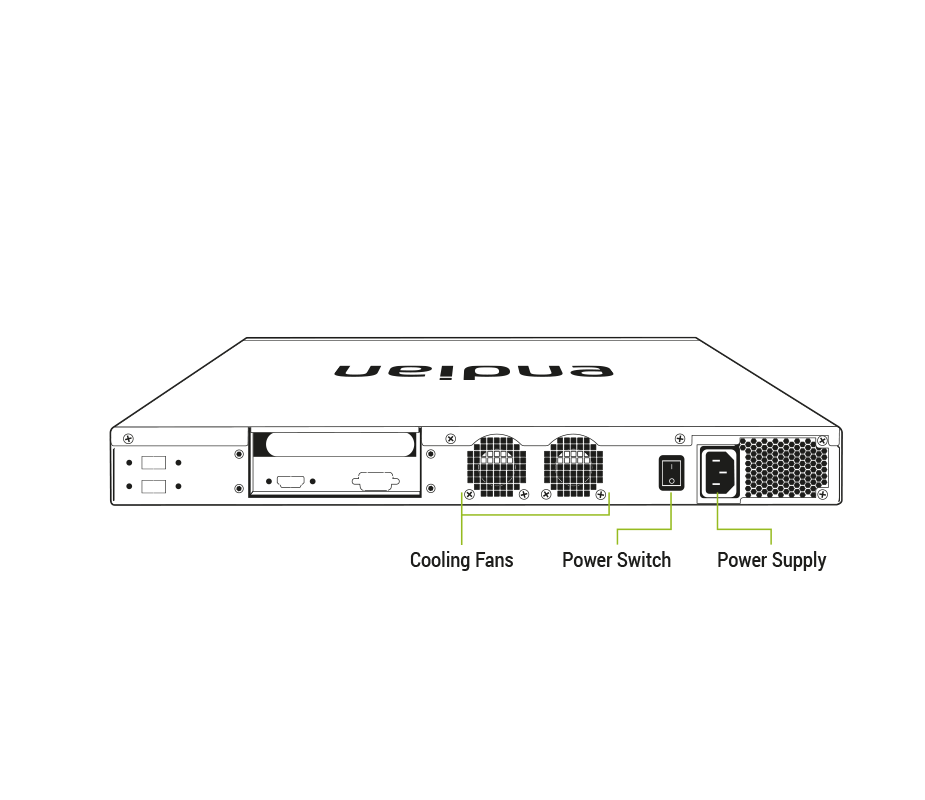

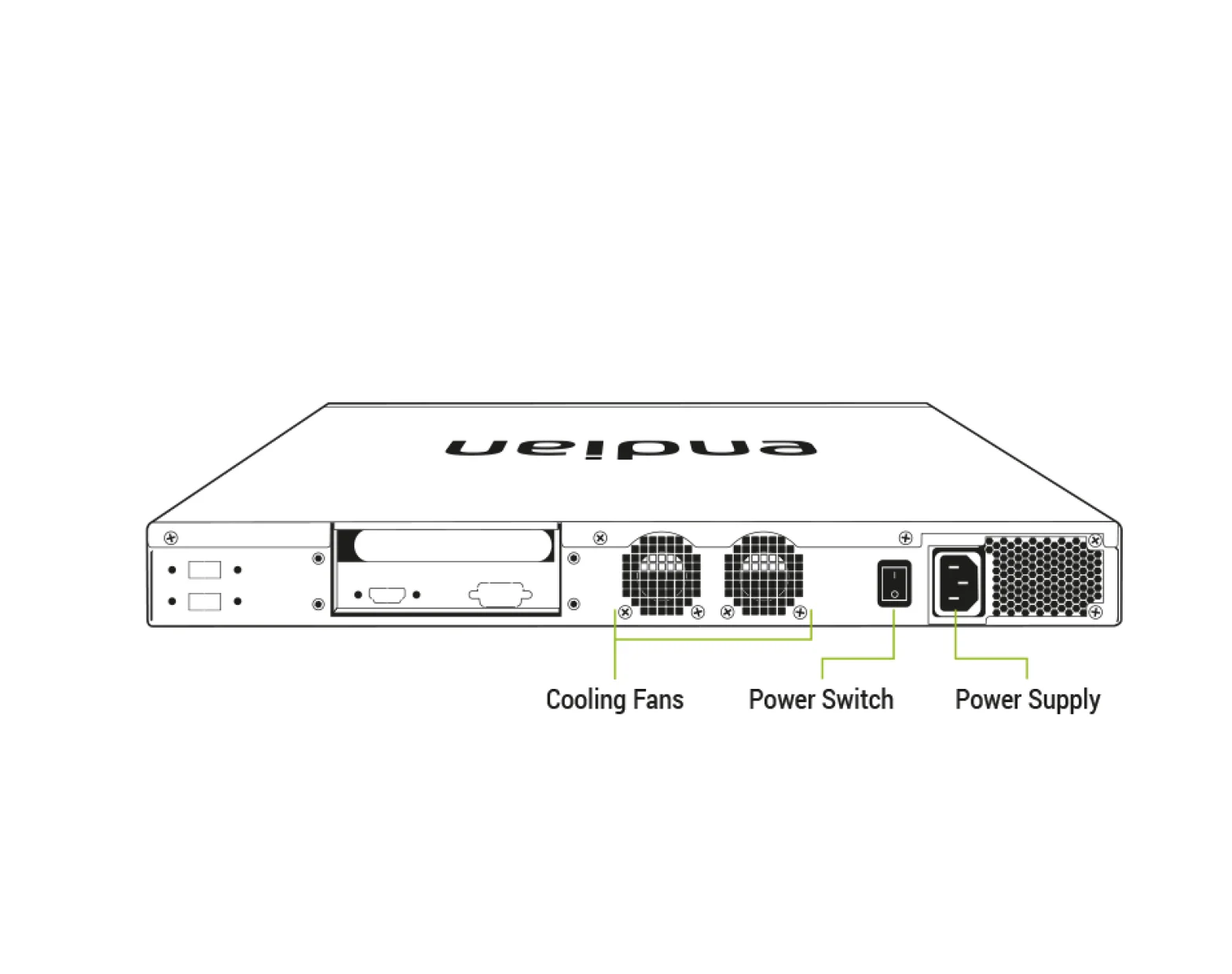

Cooling
2x Fan
LCD Display
Yes
Certifications
CE, UKCA, FCC, RoHS
Optionals & Accessory
Ear-bracket rack mounting kit
Included: Simply attach the ear mount of the unit with two screws on both sides of the unit. You can now easily install the Endian hardware into the rack.
Slide rack mounting kit
Easy for assembling 1U slide rack mounting Kit. The kit includes 2 slides, rack-mounting hardware and mounting screws.
Simplify your cybersecurity challenges
EndianOS
Businesses need a secure and scalable foundation to protect their IT & OT environments. EndianOS, a hardened Linux-based operating system, ensures seamless connectivity and robust security, bridging the gap between IT & OT for a safer digital transformation.
Get a Quote Tailored to Your Needs
Request Pricing
Every network is unique, and so are your security requirements. Whether you need a solution for IT, OT, or industrial environments, we offer flexible pricing options to match your needs. Get in touch with us to receive a personalized quote and find the right Endian solution for your business.
